Citroen C4: Rear bench seat

Bench seat with fixed cushions and split folding backrests (2/3-1/3) to adapt the boot load space.

The rear seat cushion remains fixed. To increase the boot loading volume, tilt the bench seat backrest.

• Rear head restraints
• Repositioning the backrests

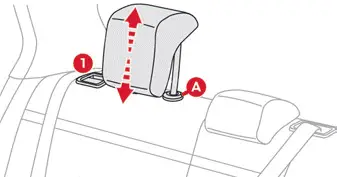

Rear head restraints

They have two positions:

- A high position, for when the seat is in use:

► Pull the head restraint fully up.

- A low position, for stowing, when the seat is not in use:

► Press the lug A to release the head restraint and push it down.

The rear head restraints can be removed.

Removing a head restraint

► Release the backrest using control 1.

► Tilt the backrest slightly forwards.

► Pull the head restraint fully up.

► Press the lug A to release the head restraint and remove it completely.

Refitting a head restraint

► Insert the head restraint rods into the guides in the corresponding backrest.

► Push the head restraint fully down.

► Press the lug A to release the head restraint and push it down.

Never drive with passengers seated at the rear when the head restraints are removed; the head restraints should be in place and in the high position.

The head restraint for the centre seat and those for the outer seats are not interchangeable.

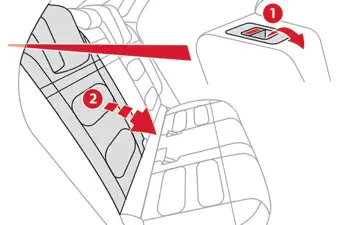

Folding the backrests

Manoeuvring the backrests should only be done when the vehicle is stationary.

First steps:

► Lower the head restraints.

► If necessary, move the front seats forward.

► Check that no person or object might interfere with the folding of the backrests (e.g. clothing, luggage).

► Press the backrest release grip 1.

► Guide the backrest 2 down to the horizontal position.

When the backrest is released, the red indicator in the release grip is visible.

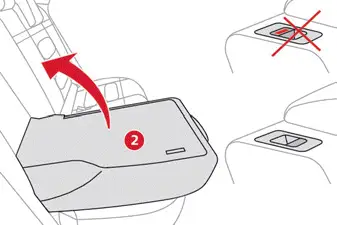

Repositioning the backrests

First check that the outer seat belts are lying vertically flat alongside the backrest latching rings.

► Put the backrest 2 in the upright position and push it firmly to latch it home.

► Check that the red indicator is no longer visible in the release grip 1.

► Ensure that the outer seat belts were not trapped during the operation.

Please note: an incorrectly latched backrest compromises the safety of passengers in the event of sudden braking or an accident.

The contents of the boot may be thrown forwards - risk of serious injury!

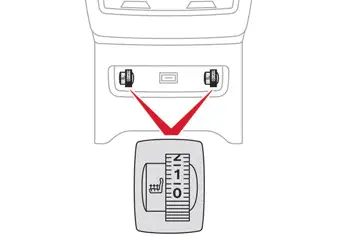

Heated seats

The control knobs for each side seat are located at the rear of the centre console.

► Turn the corresponding knob to switch on and select a setting:

• 0 = off.
• 1 = low.
• 2 = medium.
• 3 = high.

The function is active only with the engine running and when the outside temperature is below 20ºC.

Do not use the function when the seat is not occupied.

Reduce the heating intensity as soon as possible.

When the seat and passenger compartment have reached a satisfactory temperature, switch the function off; reducing electrical consumption in turn decreases energy consumption.

Prolonged use of heated seats is not recommended for people with sensitive skin.

There is a risk of burns for people whose perception of heat is impaired (e.g. illness, taking medication).

To keep the heated pad intact and to prevent a short circuit:

- Do not place heavy or sharp objects on the seat.

- Do not kneel or stand on the seat.

- Do not spill liquids onto the seat.

- Never use the heating function if the seat is damp.
