Citroen C4: Mirrors

• Door mirrors
• Interior rear view mirror

Door mirrors

As a safety measure, the mirrors should be adjusted to reduce the "blind spots".

The objects that you see in the mirrors are in fact closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.

Adjustment

► Move control A to the right or to the left to select the corresponding mirror.

► Move control B in any of the four directions to adjust.

► Return control A to its central position.

Manual folding

The mirrors can be folded manually (parking obstruction, narrow garage, etc.).

► Turn the mirror towards the vehicle.

Electric folding

Depending on equipment, the door mirrors can be folded electrically.

► From the inside, with the ignition on, place control A in the central position.

► Pull control A backwards.

► Lock the vehicle from the outside.

If the mirrors are folded using control A, they will not unfold when the vehicle is unlocked.

Electric unfolding

► From outside: unlock the vehicle.

► From inside: with the ignition on, place control A in the central position and then pull it rearwards.

Activation/Deactivation

 With Touch screen BLUETOOTH audio system or MyCitroën Play

The automatic door mirror folding/ unfolding function is configured via the Driving touch screen menu.

 With MyCitroën Drive Plus

The automatic door mirror folding/ unfolding function is configured via the Settings > Vehicle touch screen application.

Demisting/Defrosting

The demisting/defrosting of the door mirrors works with the demisting/ defrosting of the rear screen.

For more information on Rear screen demisting/defrosting, refer to the corresponding section.

Interior rear view mirror

Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps of other vehicles, etc.

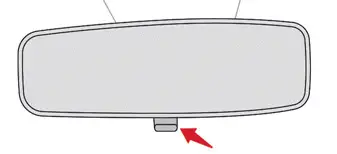

Manual model

 Day/night position

► Pull the lever to change to the anti-dazzle "night" position.

► Push the lever to change to the normal "day" position.

 Adjustment

► Adjust the mirror to the normal "day" position.

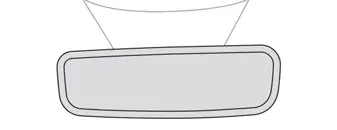

Automatic "electrochrome" model

The electrochrome system uses a sensor that detects the level of exterior brightness and that coming from the rear of the vehicle, in order to automatically and gradually switch between day and night usage.

To ensure optimum visibility while manoeuvring, the mirror automatically brightens when reverse gear is engaged.

The system is inoperative if the load in the boot exceeds the height of the load space cover or if the load space cover has items placed on it.
