Citroen C4: Warning triangle

This reflective and dismantable device is to be installed on the side of the road when a vehicle is broken down or damaged.

Before getting out of the vehicle

Turn on the hazard warning lamps, then put on the safety vest to assemble and install the triangle.

Storage

C4

C4 X

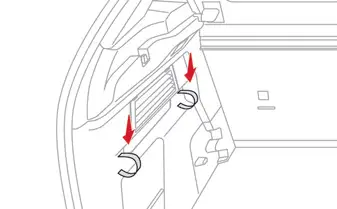

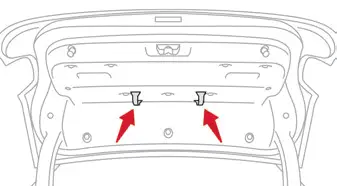

► Use the straps on the boot side trim or on the tailgate to stow the folded triangle or its storage box.

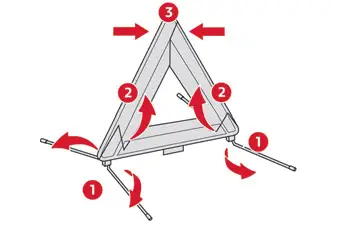

Assembling and placing the triangle

For versions supplied with a triangle as original equipment, refer to the illustration above.

For other versions, refer to the assembly instructions provided with the triangle.

► Put the triangle in place behind the vehicle, as required by local legislation.

Running out of fuel (Diesel)

With Diesel engines, the fuel system must be primed if you run out of fuel.

Before starting to prime the system, it is essential to put at least 5 litres of Diesel into the fuel tank.

For more information on Refuelling and on Misfuel prevention (Diesel), refer to the corresponding section.

1.5 BlueHDi engines

► Switch on the ignition (without starting the engine).

► Wait around 1 minute and switch off the ignition.

► Operate the starter motor to start the engine.

If the engine does not start at the first attempt, do not keep trying, but restart the procedure.
