Citroen C4: Sunroof

The sunroof consists of a movable glass panel that slides over the roof and a blind that can be opened independently. Opening the sunroof automatically opens the blind.

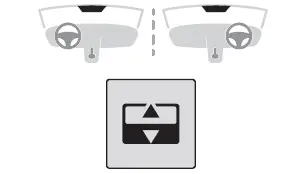

► To operate the panoramic sunroof, use the button in the roof console.

The sunroof can be operated when the ignition is turned on (if the battery is charged enough), with the engine running, in STOP mode of Stop & Start, and up to 45 seconds after turning off the ignition.

Precautions

Do not put your head or arms through the sunroof while the vehicle is moving - risk of serious injury! Ensure that any luggage or accessories carried on the roof bars do not interfere with the movement of the sunroof.

Do not place heavy loads on the movable glass panel of the sunroof.

If the sunroof is wet, following a rain shower or washing the vehicle, wait until it is completely dry before operating it.

Do not operate the sunroof if it is covered by snow or ice - risk of damage! Use only plastic scrapers to remove snow or ice from the sunroof.

Regularly check the condition of the sunroof seals (e.g. presence of dust, dead leaves).

If using a car wash, check first that the roof is correctly closed and keep the high-pressure jet at least 30 centimetres from the seals.

Never leave the vehicle with the sunroof open.

Operation

When opening the sunroof fully, the movable glass moves to a partially open position, then slides over the roof. Any intermediate position is possible.

Before operating the sunroof control button, ensure that no object or person might prevent the movement.

Pay particular attention to children when operating the sunroof.

If something is trapped when operating the sunroof, reverse the movement of the sunroof by pressing the control button in question.

The driver must ensure that passengers use the sunroof correctly.

Any manual intervention on the position of the sunroof may disturb the anti-pinch device. Perform a reinitialisation.

Anti-pinch system

If the sunroof encounters an obstacle when closing, the movement is automatically reversed.

Opening/Closing the sunroof

► To open the sunroof, use the part of the button located towards the rear.

► To close the sunroof, use the part of the button located towards the front.

Operating the button

► Pressing the button beyond its point of resistance opens or closes the sunroof fully.

► Pressing the button again stops the movement in progress.

► By keeping the button pressed (without going beyond the point of resistance), the movement of the glass stops when this button is released.

► When the sunroof is closed: pressing once without passing the point of resistance moves it to the partially open position.

► When the sunroof is partially open: pressing once on the front part of the button, without going beyond the point of resistance, closes it completely.

The sunroof and windows can be closed by holding down the remote control locking button.

Opening/Closing the blind

► To open the blind, pull its handle backwards until the desired position is reached.

► To close the blind, push its handle forwards until the desired position is reached.

Reinitialisation

Reinitialisation is required after reconnecting the battery, or if the sunroof malfunctions or moves in a jerky manner.

► Check that nothing is affecting the movement of the sunroof and that the seals are clean.

Automatic sunroof closing is no longer available, only manual closing is possible.

Remote sunroof closing with the electronic key is also no longer available in this case.

► With the ignition on, press and hold the front part of the button to close the sunroof.

The sunroof closes step by step. When fully closed, it performs a slight opening/closing movement.

► Release the button 1 second after the end of the movement.
