Citroen C4: Reversing camera

For more information, refer to the General recommendations on the use of driving and manoeuvring aids.

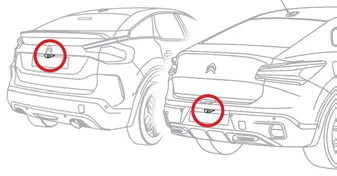

The reversing camera is activated automatically when reverse gear is engaged.

The image is displayed on the touch screen.

The reversing camera function may be supplemented by the parking sensors.

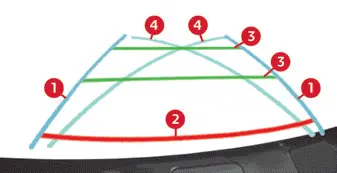

The blue lines 1 indicate the general direction of the vehicle (the gap corresponds to the width of your vehicle including the mirrors).

The red line 2 represents a distance of about 30 cm beyond the edge of your vehicle's rear bumper.

The green lines 3 represent distances of about 1 and 2 metres beyond the edge of your vehicle's rear bumper.

The turquoise curves 4 show the maximum turning angle in either direction.

C4

Opening the tailgate causes the display to disappear.

Clean the reversing camera regularly using a soft, dry cloth.
