Citroen C4: Proximity Keyless Entry and Start

This is a Keyless Entry and Start system.

It enables automatic vehicle locking/unlocking simply by detecting the electronic key.

As long as the driver has the electronic key on their person, the vehicle unlocks as they approach and locks when they walk away.

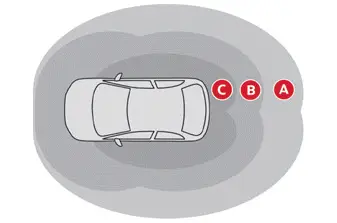

Key recognition zones:

Zone A: welcome lighting on approaching the vehicle (between 3 and 5 metres from the vehicle).

Zone B: automatic locking on moving away from the vehicle (about 2 metres from the vehicle).

Zone C: automatic unlocking on approaching the vehicle (between 1 and 2 metres from the vehicle).

Activation/Deactivation

With Touch screen BLUETOOTH audio system or MyCitroën Play

The automatic functions are configured via the Driving touch screen menu.

With MyCitroën Drive Plus

The automatic functions are configured in the Settings > Vehicle touch screen application.

• Unlocking the vehicle
• Locking the vehicle

Unlocking the vehicle

With Touch screen BLUETOOTH audio system or MyCitroën Play

Selective unlocking is configured in the Driving touch screen menu.

With MyCitroën Drive Plus

Selective unlocking is configured in the Settings > Vehicle touch screen application.

Complete unlocking

The vehicle (doors and boot) unlocks automatically as the driver approaches in zone C, if the automatic functions are activated.

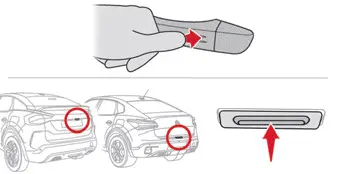

Depending on version, you can also unlock the vehicle by gently pressing the driver's door handle or the button on the boot.

Unlocking, and alarm deactivation (depending on version), is confirmed by the flashing of the direction indicators.

Depending on version, the door mirrors unfold.

If the electronic key remains around the vehicle (zones A, B or C) for more than 15 minutes without action, the automatic functions are deactivated. To unlock or lock the vehicle, use the remote control or, depending on version, press the driver's door handle.

If using the door handle does not lock/ unlock the vehicle, bring the electronic key closer and repeat the desired action.

Selective unlocking

 Driver's door

It operates automatically when approaching the driver's door, if the automatic functions are activated.

Depending on version, it can also operate by gently pressing the driver's door handle.

The driver's door and the fuel filler flap are unlocked (Petrol, Hybrid or Diesel).

The driver's door and the charging flap are unlocked (Electric).

► Once inside the vehicle, to unlock all accesses, press the central locking button or pull the opening control on any door.

Selective unlocking of the tailgate

The tailgate unlocks automatically as you approach the rear of the vehicle.

► Press the tailgate control to open the boot.

The doors remain locked.

After a selective unlocking of the tailgate, if the vehicle has not been fully unlocked, the tailgate will automatically relock after closing.

Locking the vehicle

With MyCitroën Drive Plus

Depending on version, the activation/ deactivation of the lock audible signal is configured in the Settings > Vehicle touch screen application.

Normal locking

With the doors and boot closed, the vehicle locks automatically upon leaving zone B, if the automatic functions are activated.

Depending on version, you can also lock the vehicle by gently pressing the driver's door handle.

Locking is confirmed by the lighting of the direction indicators, and by a double audible signal when the vehicle is locked upon walking away.

The alarm does not activate when locking automatically from a distance (the direction indicators do not light up).

It is not possible to lock the vehicle if the electronic key is left inside the vehicle.

Deadlocking

Deadlocking renders the interior door controls inoperative. It also deactivates the central locking button.

The horn remains operational.

Never leave anyone inside the vehicle when it is deadlocked.

► Ignition off, gently press the driver's door handle to lock the vehicle.

► Press it again within 3 seconds to deadlock the vehicle (confirmed by the temporary lighting of the direction indicators).

A double audible signal indicates that the vehicle is not deadlocked.

Advice

If one of the doors or the boot is still open or if the electronic key for the Keyless Entry and Start system has been left inside the vehicle, central locking will not take place.

If the vehicle is unlocked but the doors or tailgate are not subsequently opened, the vehicle will automatically lock itself again after about 30 seconds. If fitted to the vehicle, the alarm is automatically reactivated (if previously activated).

Automatic folding/unfolding of the door mirrors is configured in the touch screen.

For more information on Mirrors, refer to the corresponding section.

As a safety measure, never leave the vehicle, even for a short time, without taking the Keyless Entry and Start system's electronic key with you.

Be aware of the risk of theft of the vehicle if the key is present in one of the defined areas while the vehicle is unlocked.

In order to preserve the battery in the electronic key and the vehicle's battery:

- The unlocking on approach function (zone C) automatically switches to hibernation mode after several days (approximately one week) without being used. To unlock the vehicle, use the remote control or press on one of the door handles.

The next time the vehicle is started, the automatic unlocking and locking functions will be reactivated.

- If the welcome lighting is triggered several times in succession without the vehicle subsequently being started, it will be deactivated.

- All "hands-free" functions switch to hibernation mode after 21 days without being used. To restore these functions, unlock the vehicle using the remote control and start the engine.

Electrical interference

The electronic key may not work if it is close to an electronic device (e.g. mobile telephone (switched on or on standby), laptop computer, strong magnetic fields). If this occurs, move the electronic key away from the electronic device.
