Citroen C4: Presentation

These illustrations and descriptions are intended as a guide. The presence and location of certain elements may vary depending on the version or trim level.

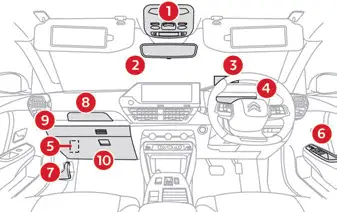

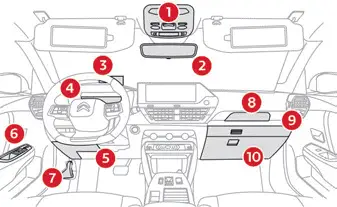

Instruments and controls

1. Courtesy lamp/Front reading lamps
   Emergency and assistance call buttons
   Sunroof
   Warning lamps display for seat belts and front passenger airbag
2. Interior rear view mirror
3. Head-up display
4. Instrument panel
5. Fusebox
6. Electric windows
   Electric door mirrors
7. Bonnet release
8. Smart Pad Support Citroën
9. Dashboard drawer
10. Glove box

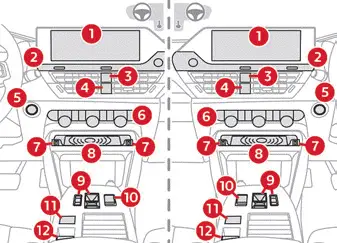

Centre console

1. 5-inch touch screen with Touch screen BLUETOOTH audio system
   or
   10-inch touch screen with MyCitroën Play or MyCitroën Drive Plus
2. Touch screen on/off and volume control
   With MyCitroën Play:
   Direct access to the Driving menu
   Access to the touch screen menus
   With MyCitroën Drive Plus:
   Access to the Shortcuts for driving aids
   Access to the HOME pages
3. Hazard warning lamps
4. Central locking
5. Switching the engine on/off
6. Air conditioning
   Heated seats
7. USB sockets (type A/type C)
8. Storage compartment or Wireless smartphone charger
9. Gearbox or drive selector
10. Choice of driving mode
11. Access to the Energy menu
12. Electric parking brake

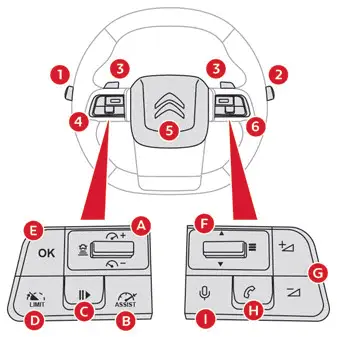

Steering-mounted controls

1. External lighting controls/Direction indicators/Select the instrument panel display mode
2. Wiper controls/Screenwash/Trip computer
3. Automatic gearbox control paddles
4. Controls for Cruise control/Speed limiter/ Adaptive cruise control

1. Increase/Decrease the speed setting
   Display and adjustment of the distance setting to the vehicle in front (Adaptive cruise control)
2. Select/Deselect the cruise control function
3. Start/Pause of the Speed limiter or Cruise control with the speed setting saved Confirmation of vehicle restart after automatic stop (Adaptive cruise control with Stop&Go function)
4. Select/Deselect the speed limiter function
5. Activation of the Speed limiter or Cruise control with the speed setting saved Use the speed suggested by the Road signs recognition system

5. Horn/Driver front airbag
6. Audio system controls

6. Select previous/next media
7. Decrease/Increase volume
8. Access the Telephone menu Manage calls
9. Voice commands

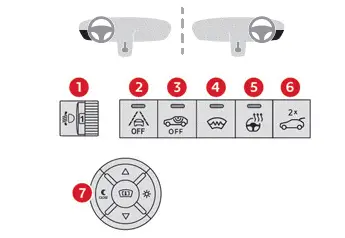

Side controls

1. Headlamp beam height adjustment
2. Lane keeping assist
3. Alarm
4. Heated windscreen
5. Heated steering wheel
6. Tailgate opening (C4 X)
7. Head-up display controls
