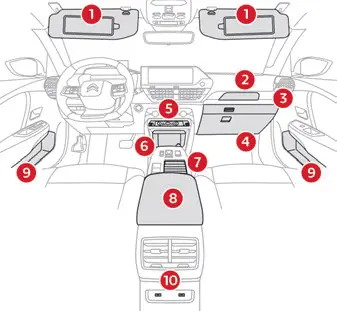

Citroen C4: Interior fittings

1. Sun visor
2. Smart Pad Support Citroën
3. Dashboard drawer
4. Glove box
5. Wireless smartphone charger
   USB sockets (type A/type C)
6. Storage compartment
   12 V socket
7. Storage compartment with cup holders
8. Centre armrest with storage compartment
9. Door pockets
10. USB sockets
    Heated rear seats

Make sure you do not leave any item in the passenger compartment which could act like a magnifying glass under the effect of the sun's rays and cause a fire - risk of fire or damage to interior surfaces!

• Sun visor
• Wireless smartphone charger
• CITROËN Hi-Fi system

Sun visor

► With the ignition on, raise the concealing flap; depending on the version, the mirror is illuminated automatically.

This sun visor is also equipped with a ticket holder.

Glove box

► To open the glove box, lift the handle.

With the ignition on, the glove box is lit when open.

Never drive with the glove box open when a passenger is at the front. It may cause injury during sharp deceleration!

Dashboard drawer

► To open the drawer, press the handle and pull.

Never drive with the drawer open and a passenger in the front seat - risk of injury during sharp deceleration!

Smart Pad Support Citroën

This allows you to place a mobile device, such as a smartphone or touch screen tablet, into a dedicated holder (sold separately).

► Press the bracket to make it pop out.

► Open the clamp on the back of the holder to insert the mobile device.

Remove the mobile device before stowing the bracket.

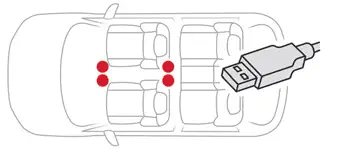

USB sockets

These symbols determine the type of use of a USB socket:

Power supply and recharging.

Likewise, plus exchange of multimedia data with the audio system.

USB sockets allow the connection of a portable device.

The USB socket located at the front on the left-hand side also allows a smartphone to be connected by Android Auto or CarPlay, enabling certain smartphone applications to be used on the touch screen.

For best results, use a cable made or approved by the device manufacturer.

These applications can be managed using the steering-mounted controls or the audio system controls.

When the USB socket is used, the portable device charges automatically.

While charging, a message is displayed if the power drawn by the portable device exceeds the current supplied by the vehicle.

For more information about how to use this equipment, refer to the sections describing the audio and telematics systems.

12 V accessory socket

► Plug in a 12 V accessory (with a maximum rated power of 120 W) using a suitable adapter.

Observe the maximum power rating to avoid damaging the accessory.

The connection of an electrical device not approved by CITROËN, such as a USB charger, may adversely affect the operation of vehicle electrical systems, causing faults such as poor radio reception or interference with displays in the screens.

Wireless smartphone charger

This system allows wireless charging of a portable device such as a smartphone, using the magnetic induction principle, in accordance with the Qi.

The portable device to be charged must be compatible with the Qi standard, either by design or by using a compatible holder or shell.

A mat can also be used provided that it is approved by the Manufacturer.

The charging area is identified by the Qi symbol.

The charger works with the engine running and with the Stop & Start system in STOP mode.

Charging is managed by the smartphone.

With the Keyless Entry and Start system, the charger's operation may be briefly disrupted when a door is opened or the ignition is switched off.

Charging

► With the charging area clear, place a device in its centre.

When the portable device is detected, the charger's indicator lamp lights up green. It remains lit for the whole time that the battery is being charged.

The system is not designed to charge multiple devices simultaneously.

Do not leave metal objects (e.g. coins, keys, vehicle remote control) in the charging area while a device is being charged - Risk of overheating or interrupting the charging!

When using applications for a long time in combination with wireless charging, some smartphones may switch to thermal safety and cause some functions to stop.

Checking operation

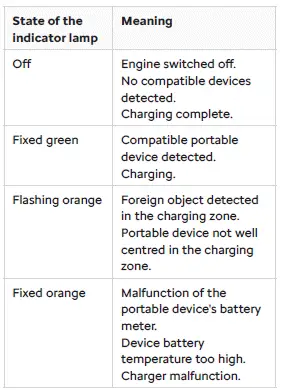

The state of the indicator lamp allows the operation of the charger to be monitored.

If the indicator lamp is fixed orange:

- remove the device, then place it back in the centre of the charging zone.

or

- remove the device and try again in a quarter of an hour.

If the problem persists, have the system checked by a CITROËN dealer or a qualified workshop.

CITROËN Hi-Fi system

(Depending on version)

The vehicle is equipped with a high-fidelity acoustic system.

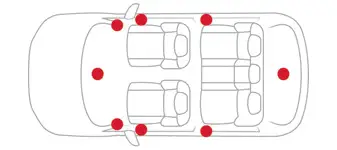

8 speakers offer the pleasure of pure and detailed sound inside the vehicle:

• 2 tweeters and 2 woofers in the front
• 2 full range speakers in the rear
• 1 speaker in the central area of the dashboard
• 1 subwoofer under the trunk carpet

Mats

Fitting

When fitting it on the driver's side, only use the mountings present on the carpet (a "click" indicates proper locking).

The other mats are simply laid over the carpet.

Removing/refitting

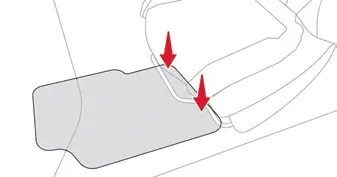

► To remove it on the driver's side, move the seat backwards and unclip the fasteners.

► To refit it, position the mat and secure it by pressing down.

► Check that the mat is secured correctly.

To avoid any risk of jamming the pedals:

- Only use mats which are suited to the fixings already present in the vehicle; these fixings must be used.

- Never fit one mat on top of another.

The use of mats not approved by CITROËN may interfere with access to the pedals and hinder the operation of the cruise control/ 3 speed limiter.

The approved mats have two fasteners located underneath the seat.

Shark fin antenna

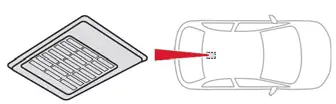

A ventilation grille is present at the rear of the roof for cooling the shark fin antenna.

Any ventilation noise produced, with the ignition on or the engine running, is completely normal.
