Citroen C4: Front seats

Before moving the seat backwards, ensure that there is no person or object that might prevent the full travel of the seat.

There is a risk of trapping or pinching passengers if present in the rear seats or of jamming the seat if large objects are placed on the floor behind the seat.

Manual adjustments

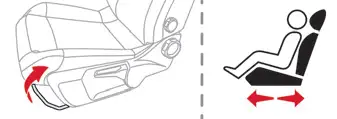

Longitudinal

► Raise the control bar and slide the seat forwards or backwards.

► Release the control bar to lock the seat in position on one of the notches.

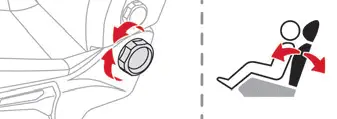

Backrest angle

► Turn the knob to obtain the desired angle.

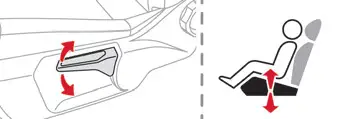

Height

► Pull the control upwards to raise or push it downwards to lower, until you obtain the position required.

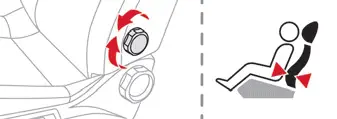

Lumbar

(driver only)

► Turn the knob to obtain the desired level of lumbar support.

Electric adjustments

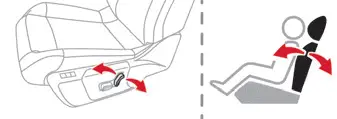

Backrest angle

► Tilt the control forwards or rearwards.

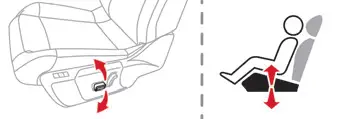

Cushion height

► Tilt the rear of the control upwards or downwards to obtain the required height.

Lumbar

► Press one of the controls to obtain the desired lumbar support.

Massage function

This function provides lumbar massage; it only operates when the engine is running as well as in STOP mode of the Stop & Start system.

Activation/Deactivation

► Press this button to activate/ deactivate the function.

Upon activation, the indicator lamp comes on.

The massage function is activated for a period of one hour.

During this time, massage is performed in 6 cycles of 10 minutes (6 minutes of massage followed by a 4-minute break).

After one hour, the function is deactivated; the indicator lamp goes off.

Heated seats

The function is active only with the engine running and when the outside temperature is below 20ºC.

► Press the button corresponding to the seat.

► Each press changes the heating level; the corresponding number of indicator lamps come on.

► To switch off the heating, press the button until all of the indicator lamps are off.

The system status is memorised when the ignition is switched off.

Do not use the function when the seat is not occupied.

Reduce the heating intensity as soon as possible.

When the seat and passenger compartment have reached a satisfactory temperature, switch the function off; reducing electrical consumption in turn decreases energy consumption.

Prolonged use of heated seats is not recommended for people with sensitive skin.

There is a risk of burns for people whose perception of heat is impaired (e.g. illness, taking medication).

To keep the heated pad intact and to prevent a short circuit:

- Do not place heavy or sharp objects on the seat.

- Do not kneel or stand on the seat.

- Do not spill liquids onto the seat.

- Never use the heating function if the seat is damp.
