Citroen C4: Engine technical data and towed loads

Engines

The engine characteristics are given in the vehicle's registration document, as well as in sales brochures.

Only the values available at the time of publication are presented in the tables.

Contact a CITROËN dealer or a qualified workshop to obtain missing values.

The maximum power corresponds to the value type-approved on a test bed, as defined by the Regulation EU 715/2007.

For more information, contact a CITROËN dealer or a qualified workshop.

Weights and towed loads

The weights and towed loads relating to the vehicle are indicated on the registration document, as well as in sales brochures.

These values are also indicated on the manufacturer's plate or label.

For more information, contact a CITROËN dealer or a qualified workshop.

The GTW (Gross Train Weight) and towed load values indicated are valid up to a maximum altitude of 1,000 metres. The towed load value must be reduced by 10% for each additional 1,000 metres of altitude.

The maximum authorised nose weight corresponds to the weight permitted on the towball.

When exterior temperatures are high, the vehicle performance may be limited in order to protect the engine. When the exterior temperature is higher than 37ºC, reduce the towed weight.

When using a vehicle to tow, never exceed a speed of 62 mph (100 km/h) (observe the local legislation in force).

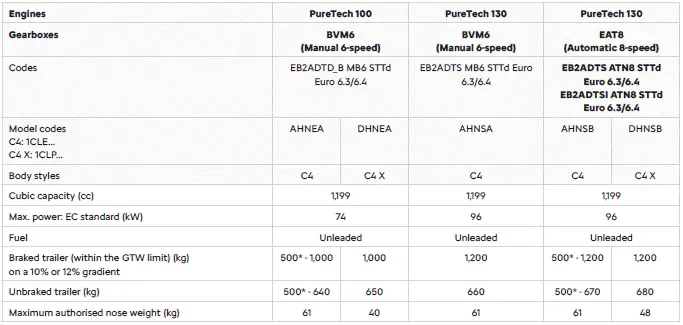

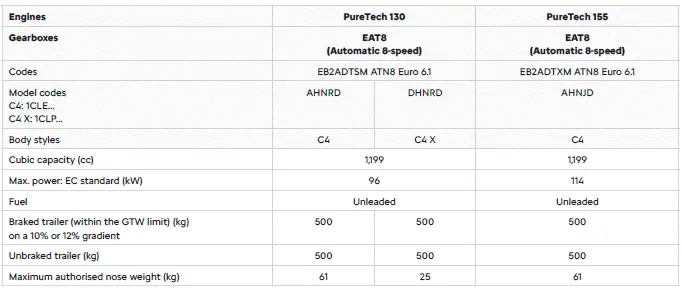

Engines and towed loads - Petrol

* Depending on country of sale

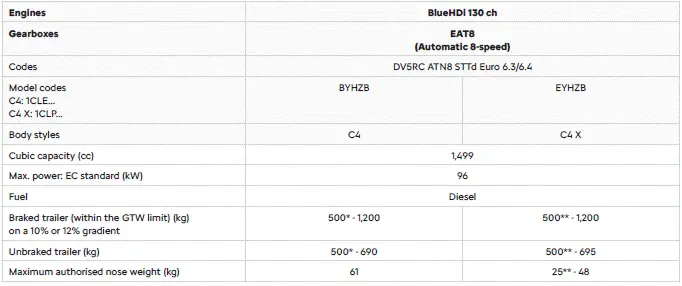

Engines and towed loads - Diesel

* Depending on country of sale

** Russia only

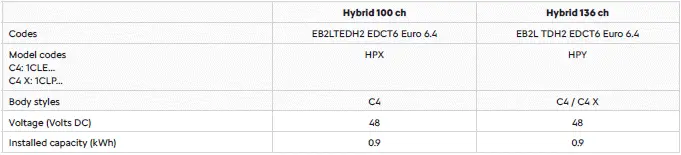

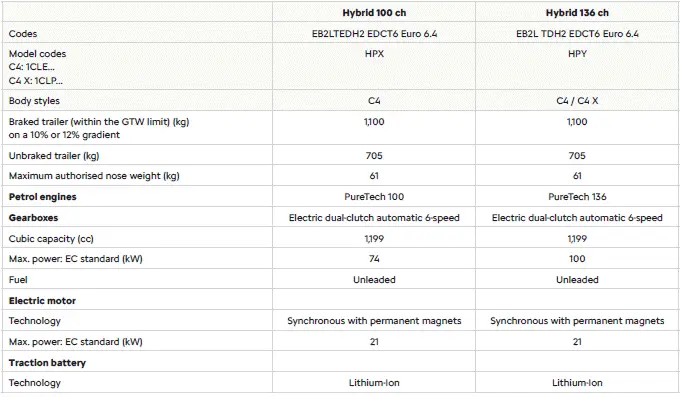

Engines and towed loads - Hybrid

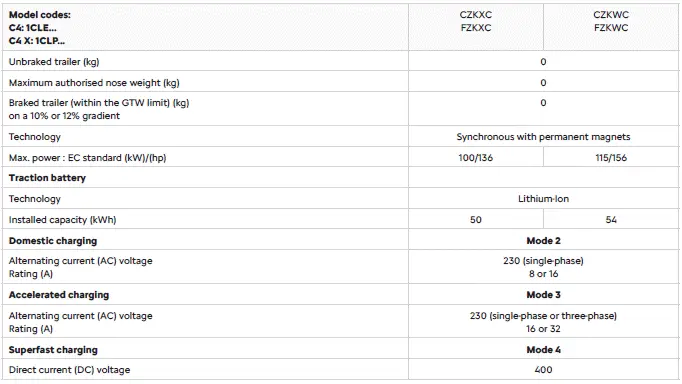

Engines and towed loads - Electric

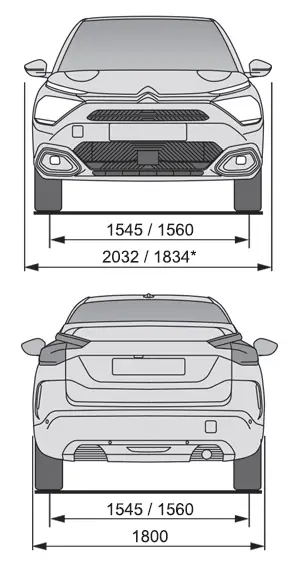

Dimensions (mm)

These dimensions have been measured on an unladen vehicle.

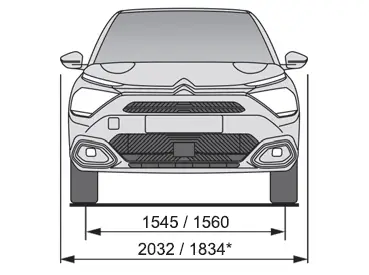

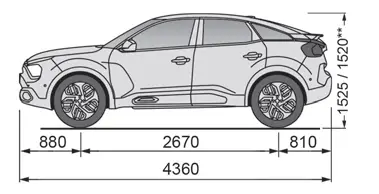

C4

* Mirrors folded

** Electric versions

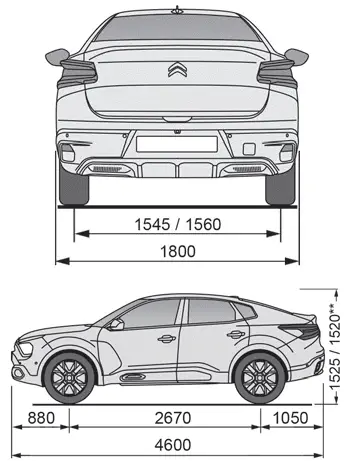

C4 X

* Mirrors folded

** Electric versions
