Citroen C4: Boot fittings

C4

C4 X

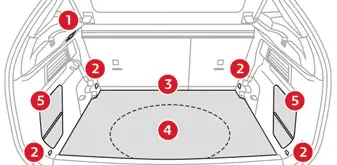

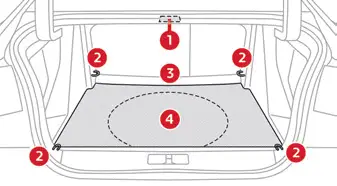

1. Boot lamp
2. Stowing rings
3. Boot carpet or 2-position boot floor
4. Storage well
5. Side storage boxes

The stowing rings are designed to secure luggage using different types of retaining nets.

These retaining nets are available as an accessory.

For more information, contact a CITROËN dealer or a qualified workshop.

2-position boot floor

This two-position floor allows the boot volume to be optimised using the lateral stops located on the sides:

- High position (100 kg max.): to obtain a flat floor up to the front seats, when the rear seats are folded down.

- Low position (150 kg max.): maximum boot volume.

On certain versions, the adjustable boot floor cannot be fitted in the low position.

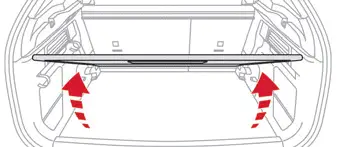

To change the height:

► Lift and pull the floor towards you using its central handle, then use the lateral stops to move it.

► Push the floor all the way forwards to place it in the desired position.

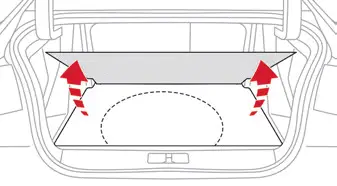

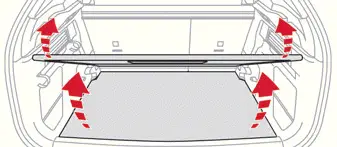

To keep it in the inclined position:

► From the high position, lift the floor towards the boot.

► Take it past the retractable stops, then rest the floor on these stops.

Storage well

C4

► Lift the boot floor as far as possible, then lift the carpet to access the storage well.

C4 X

► Lift the boot carpet as far as possible to access the storage well.

Depending on version, it includes:

- A temporary puncture repair kit with the tool kit.

- A spare wheel with the tool kit.

- The traction battery charging cable (Electric).

Boot lamp

It comes on automatically when the boot is opened and goes off automatically when the boot is closed.

The lighting time varies according to the circumstances:

- When the ignition is off, approximately 10 minutes.

- In energy saving mode, approximately 30 seconds.

- With the engine running, unlimited.
